Audible Devices

AX Explosion-Proof General Alarm Siren

  • Available with 120VAC/125VDC universal motor
  • Produces 105dBa @ 10' (115dBa @ 1m)
  • Wall mount
  • Maintenance free
  • Type 3R enclosure
  • UL and cUL Listed, CSA Certified

The Federal Signal Model AX siren was introduced in 1937 and received UL listing in 1938. This high pitched siren features a unique rotor and stator design that produces a distinctive tonal quality.

The universal motor operates on 120VAC or 125VDC. This siren features oversized ball bearings which are lubricated for the life of the siren, eliminating periodic maintenance.

The Model AX is UL Listed for use in Class I, Division 1, Groups C and D; Class II, Division 2, Groups E, F, and G; and Class III locations. This siren is also cUL Listed and CSA Certified.

Models

Part # Description Ship Weight Net Weight
AX-120SB Siren, explosion-proof, 120VAC/DC 13.4 lbs. 10 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
Motor, 120VAC/DC K8242C074B Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Audible signal devices for use in hazardous locations UGKZ_E12629.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Audible signal devices for use in hazardous locations certified for Canada UGKZ7_E12629.pdf
Certified by CSA International
Signal appliances, audible, for hazardous locations 4818_02.pdf

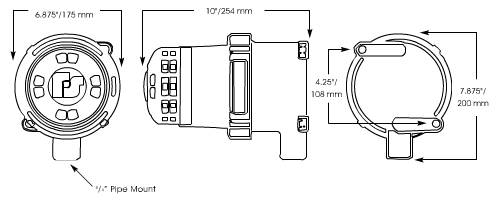

Diagrams

Specs

Voltage 120VAC/125VDC
Mount Wall
Operating Current 1.9 Amps
Operating Temperature Min. -13 F
Operating Temperature Max. 150 F
Motor Universal
Decibel Output

105 at 10 Feet

115 at 1 Meter

Frequency Response 1830Hz
Enclosure Rating Type 3R
Height 7.875 IN
Width 6.875 IN
Depth 10 IN
