Federal Signal

- Safety and Security Systems / Industrial request quote contact us Call Us Toll-Free: 877.268.3700

Audible Devices

EBA Vehicular Back-Up Alarm

  • Single and dual function models
  • Dual function feature for selectable tone (EPBA)
  • Impact resistance housing
  • Universal mounting bracket included
  • Low amp draw
  • Sealed against moisture and contaminants
  • Protected against voltage spikes
  • State of the art technology and components

The Evacuator® back-up alarm offers superior reliability with exceptional warning power. Evacuator alarms utilize piezo-electric circuitry and solid-state components to minimize the effects of vibration and reduce amp draw. To seal out moisture and contaminants, the unique nickel-plated terminal inserts are hermetically sealed, and the housing is environmentally sealed.

The Evacuator Plus back-up alarm is the only alarm that includes a state-of-the-art dual function feature (patent pending). The dual function feature allows the alarm to produce two distinctly different tones by reversing the polarity of the wiring. Normal polarity produces a "Pulsed" tone, which is an intermittent signal that is primarily use for back-up warning. Reversed polarity produces a "Constant-On" tone, which is a continuous signal that can be used to signal motion such as the lifting of a truck platform or gate.

The alarm is designed for multi-volt operation and meets SAE and OSHA requirements for motor vehicles and material handling equipment. All models include a universal mounting bracket.

Models

Part # Description Ship Weight Net Weight
EBA Evacuator back-up alarm, single tone, 12-24VDC 0.6 lbs.   Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency


NO DOCUMENTS FOUND

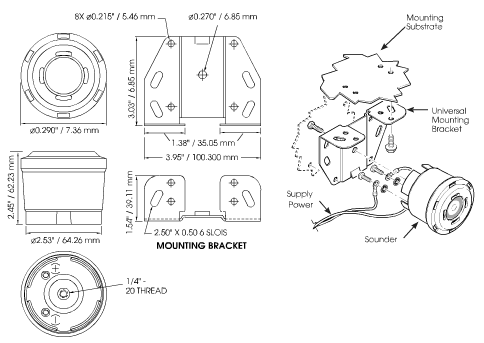

Diagrams

Specs

Voltage 12-24VDC
Mount Universal
Operating Current 0.04 Amps
Operating Temperature Min. -40 F
Operating Temperature Max. 74 F
Decibel Output 97 dB
Output Frequency 2.35kHz
Length 2.9 IN
Width 2.9 IN
Height 2.4 IN
