Audible Devices

ES Series Hazardous Area Sounders and Powered Loudspeakers

  • 8 watt, 104dBa output
  • 15 watt, 107dBa output
  • 25 watt, 116dBa output
  • On-board choice of 15 tones
  • Remote tone selection
  • Dual cable entries
  • Integrated DC and AC voltages
  • Short horn version (8W)
  • Approved for Zone 1 IIB and IIC
  • Watertight to IP66/IP67

Federal Signal's Model ES Series Sounders and Powered Loudspeakers are designed for rugged industrial applications where ATEX certification is required. The ES Series is comprised of two separate products that serve a variety of applications. First is a sounder that includes fifteen standard tones with a common power input that accepts an AC or DC power source. Once power is applied, a single tone may be selected through the use of a remote contact input, or all fifteen tones may be accessed independently by providing a binary string of information, specific to each tone. This allows a certain sound to match a specific alarm condition.

The second version of the ES Series is a powered loudspeaker. Once an AC or DC power source is applied, the powered loudspeaker is capable of amplifying a low-level audio signal, and reproducing it at 8, 15 or 25 watts, depending on the model selected. ES Series powered loudspeakers are the perfect option for ECHO Intercom systems, where ATEX approval is required.

The Model ES Series sounders and powered loudspeakers are available in three different configurations, from 8 watts to 25 watts, to provide an appropriate amount of sound for the ambient environment. To fine tune the product for each application, an internal volume adjustment potentiometer is provided.

Mounting is provided by a stainless-steel ratcheted mounting bracket that locks the sounder in position at a specific angle without slipping. The bottom surface of the mounting bracket also contains three mounting holes, to adapt to a variety of surfaces.

The ES Series is rated for IP66/67 through the use of a neoprene "O" ring seal. All exterior cast aluminum surfaces are finished in red powder coat paint and external hardware is manufactured from stainless steel to resist corrosion.

How To Order

  • Contact us to design a system that meets your specific requirements

Models

Part # Description Ship Weight Net Weight
Call Us Toll-Free: (877) 268-3700

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency

ATEX Certificate
Baseefa - 110 Series of IIB Loudspeakers and Sounders Baseefa03ATEX0688X_IIB.pdf
Baseefa - 110 Series of IIC Loudspeakers and Sounders Baseefa03ATEX0689X_IIC.pdf
Nemko - Loudspeaker Nemko_05ATEX1036.pdf
CE Declaration of Conformity
See card for standards 110_Series_CE.pdf
See card for standards 120_Series_CE.pdf

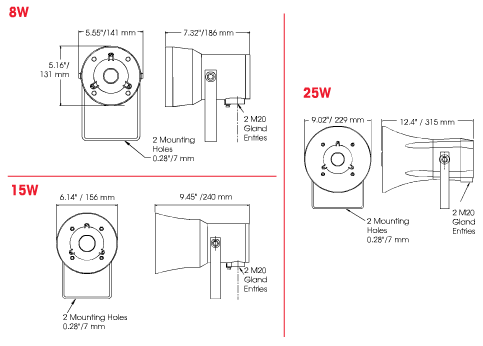

Diagrams

Specs

Operating Voltages 24VDC, 110/120VAC, 220/240VAC
Factory Default Setting 240VAC
Type 8/15-watt dual entry, 25-watt dual entry
Material Aluminum alloy LM6 (marine grade)
Color

Signal red 537 to BS381C (epoxy powder coated semi-gloss)

Mounting Stainless steel bracket (not painted)
Output, 8W Short Horn Series IIB 104dBa @ 1m (1Khz)
Output, 8W Short Horn Series IIC 100dBa @ 1m (1Khz)
Output, 15W Series IIB 107dBa @ 1m (1Khz)
Output, 15W Series IIC 103dBa @ 1m (1Khz)
Output, 25W Series 116dBa @ 1m (1Khz)
Cable Entries (bottom) 2 x M20 (supplied with 1 x EEx stopping plug)
Operating Temp.

-20ºC to +40ºC (T6)

-20ºC to +55ºC (T5)

-20ºC to +70ºC (T4)

Termination For 1.5mm (25W) conductors
Ingress Protection, 8W/15W IP67
Ingress Protection, 25W IP66 and IP67
Certificate Number, 8W/15W

Baseefa03ATEX0688X, II 2 G EExd IIB T4...T6

Baseefa03ATEX0689X, II 2 G EExd IIC T4...T6

Certificate Number, 25W Nemko 05ATEX1036, II 2 G EExd IIB T4...T6
Net Weight

8W - 3.0kg (6.6 lbs)

15W - 3.2kg (7.1 lbs)

25W - 6.4kg (14.1 lbs)

Shipping Dimensions

8W/15W - 25 x 23 x 28cm

25W - 32 x 30 x 37cm

Model Voltage Operating Current Equivalent Power
ES1-114 Sounder 24VDC/120VAC/240VAC 950mA/210mA/125mA 8-watt
ES1-112 Sounder 24VDC/120VAC/240VAC 950mA/210mA/125mA 15-watt
ES4-120 Sounder 24VDC/120VAC/240VAC 950mA/210mA/125mA 25-watt
ES1-114 Loudspeaker 24VDC/120VAC/240VAC 500mA/125mA/90mA 8-watt
ES1-112 Loudspeaker 24VDC/120VAC/240VAC 500mA/125mA/90mA 15-watt
ES5-120 Loudspeaker 24VDC 1200mA 25-watt
ES5-120 Loudspeaker 120VAC 400mA 25-watt
ES5-120 Loudspeaker 240VAC 210mA 25-watt
Notes:
1) Audio input user selectable
2) Available inputs are 0.8V, 1.5V, and 2.7V
