Audible Devices

L General Alarm Siren

  • Available with 120VAC/VDC and 240VAC/VDC universal motor
  • Rugged, durable and corrosion resistant
  • Produces 112dBa @ 10' (122dBa @ 1m)
  • Maintenance-free
  • Type 3R enclosure
  • CSA Certified

The Federal Signal Model L is a general-purpose electro-mechanical siren that produces a distinctive sound and tonal quality for industrial applications. It has a low maximum pitch which provides excellent contrast to industrial ambient noise. Introduced in 1946, the Model L is still used today in many rugged and extreme environments and applications.

The Model L features a universal motor and operates with 120VAC/125VDC. The Model L is also available for 240VAC/250VDC operation. The fractional horsepower motor drives a ported aluminum rotor within the specially designed stator to produce a unique sound. The recommended duty cycle is five minutes on/five minutes off. This siren produces an attention-getting 112dBa @ 10 feet (122dBa @ 1m).

The Model L's metal housing is sealed with red powder coat for an attractive appearance and superior corrosion resistance. The swivel mount bracket accommodates wall and surface mount installations.

The Model L is CSA Certified.

Models

Part # Description Ship Weight Net Weight
L-120 Siren, 120VAC/DC 14.2 lbs. 12 lbs. Add to Quote >
L-240 Siren, 240VAC/DC 14.2 lbs. 12 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
Balanced Rotor Assy for G Siren K8170B204A Add to Quote >
Motor K82831051A Add to Quote >

Agency

Certified by CSA International
Signal appliances, audible 4812_04.pdf

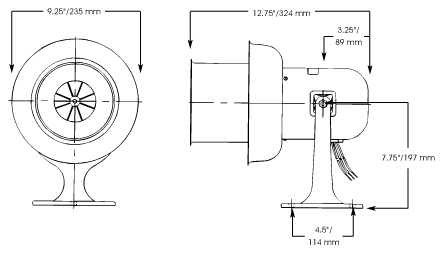

Diagrams

Specs

Voltage

120VAC/VDC

240VAC/VDC

Mount

Surface

Wall

Operating Current

1.95 Amps at 120VAC/VDC

1.0 Amps at 240VAC/VDC

Motor Universal
Duty Cycle Five minutes on/five minutes off
Decibel Output

112 at 10 Feet

122 at 1 Meter

Frequency Response 700Hz
Enclosure Rating Type 3R
Width 9.25 IN
Length 12.75 IN
