PS250 Selectone® Standby Battery/Back-up Power Supply

Federal Signal Power Supplies provide nominal 12VDC or 24VDC power that is switch selectable. The PS250, PS600 and PS1000 are designed for use as standby battery back-up during a power outage.

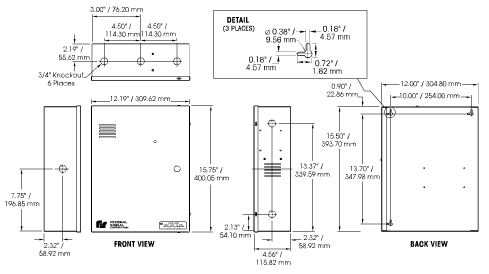

The steel enclosure is designed to mount on a wall or substantial vertical surface (indoor only). A key lock is provided to discourage unauthorized access - simple lock installation is required.

The power supply sub-assembly, which recharges the batteries, includes solid-state circuitry that provides DC operating voltage to units in a SelecTone® system, while maintaining a charge level on the batteries.

All of the units can also be used as a primary 12V or 24V power source for other devices/systems.

Model PS250 battery package includes two sealed lead-acid, gelled electrolyte batteries connected in series. Model PS250 is rated for seven amp-hours of capacity at 2.5 ampere. The PS250 is UL Listed.

Model PS600 includes two 12-volt sealed, lead-acid, gelled electrolyte batteries, connected in series. Model PS600 batteries are rated for 12 amp-hours. This unit has a six ampere capacity. Model PS600 is UL Listed.

Model PS1000 includes two 12-volt sealed, lead acid, gelled electrolyte batteries connected in series. The PS1000 is rated for 12 amp-hours capacity at 10 ampere. Model PS1000 is UL Listed.

• PS250_PS600_PS1000.pdf

• PS250.pdf
