Audible Devices

TM33 SelecTone® Custom Tone Module

  • Non-volatile memory
  • Compatible with any SelecTone® unit
  • Plug-in installation
  • UL and cUL Listed, CSA Certified

Federal Signal's Model TM33 Digital Tone Module provides audio input for any SelecTone® speaker/amplifier. The tone module holds a single pre-recorded voice message, tone or melody.

The user selects from a library of standard pre-recorded messages, tones or melodies, or creates a customized recording.

Each tone module contains a 16-second non-volatile EE-PROM (electronically erasable/ programmable read only memory) chip. The Model TM33 can either be set to play through once and stop or loop continuously.

This solid state digital device will work with Federal Signal speaker/amplifiers (including 50GC, 50GCB, 300GC, 300GCX, 302GC, 302GCX, 300X, 302X, 304GC, 314GC, 304GCX, 314GCX, 304X, and 314X) and the 300VSC-1, 300SCW-1, 300VSC-1044SB SelecTone Command Panels*.

The TM33's digital messaging capabilities are ideal for emergency evacuation announcements. Clear, concise, pre-determined instructions or custom tones can be broadcast.

Manufacturing facilities often require an audible signal to indicate status (i.e. standby, shut down, operational, etc.). Simple pre-recorded melodies can indicate these situations, while voice messages can warn operators.

Many industrial facilities utilize public address systems to broadcast repetitive pre-recorded information. The Model TM33 provides high-quality audio output in these applications.

Federal Signal's TM33 Custom Tone Module provides the user with the option of producing a completely customized digital message, in any language, without paying a "custom" price.

*Not compatible with the EM3 Extension Module

Special Considerations

  • Choose message source:
    • Select from Selectone Library or Tones and Signals Library
    • Send script to Federal Signal to be recorded in studio (additional charge)
    • Send field-recorded electronic file in .wav / .mps format to Federal Signal to be transferred to chip (additional charge)

Models

Part # Description Ship Weight Net Weight
TM33-SD Tone module, custom, Series D 0.1 lbs.   Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
Blank Message Module RMB9999SD Add to Quote >
Pre-recorded Message Module (Please specify message) RM1SD Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Audible signal appliance, general signal UCST_E4813.pdf
Audible signal devices for use in hazardous locations UGKZ_E12629.pdf
Speakers and amplifiers for fire protective signalling systems UUMW_S2635.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Audible signal appliance, general signal, certified for Canada UCST7_E4813.pdf
Audible signal devices for use in hazardous locations certified for Canada UGKZ7_E12629.pdf
Certified by CSA International
Signal appliances, audible 4812_04_1403550.pdf
Signal appliances, audible, for hazardous locations 4818_02_LR11170_18.pdf

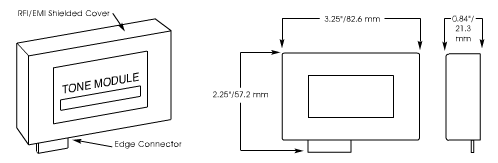

Diagrams

Specs

Height 0.84 IN
Width 2.25 IN
Length 3.25 IN
Tones See SelecTone Library
See UTM Library
