Audible Devices

UTM SelecTone® Universal Tone Module

  • 32 switchable tones
  • Compatible with all SelecTone® equipment
  • Plug-in installation
  • RFI and EMI shielded
  • UL and cUL Listed, CSA Certified, CSFM Approved

Federal Signal's Universal Tone Module (UTM) is a microcontroller-based tone generator capable of producing 32 different tones. The UTM is the key component of a SelecTone® System or a single SelecTone device. Tone selection is made by setting five DIP switches.

Housed in a plastic cover impregnated with stainless steel fibers, the circuitry is shielded from RFI (radio frequency interference) and EMI (electro-magnetic interference). The edge connector allows for quick and simple installation.

The UTM can be substituted for any of the 13 SelecTone Tone Modules (TM Series).

In addition to working with the entire SelecTone line of speaker/ amplifier products, the Model UTM is compatible with the EM3 Extension Module, 300VSC-1 Command Unit, 300VSC-1044SB Command Unit, 300SCW-1 Command Unit and 300SSC Supervised Command Unit.

Federal Signal's UTM provides crisp, clear digital signals easily distinguished from the ambient noise of commercial, institutional and industrial environments.

Models

Part # Description Ship Weight Net Weight
UTM Universal tone module 0.25 lbs.   Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency

Listed By Underwriter's Laboratory (ULus)
Audible signal appliance, general signal UCST_E4813.pdf
Audible signal appliances ULSZ_E4813.pdf
Audible signal devices for use in hazardous locations UGKZ_E12629.pdf
Speakers and amplifiers for fire protective signalling systems UUMW_S2635.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Audible signal appliance, general signal, certified for Canada UCST7_E4813.pdf
Audible signal devices for use in hazardous locations certified for Canada UGKZ7_E12629.pdf
Certified by CSA International
Signal appliances, audible 4812_04_1403550.pdf
Signal appliances, audible, for hazardous locations 4818_02_LR11170_18.pdf
Certified by CSA International
Audible signal device 7135_0811_003.pdf

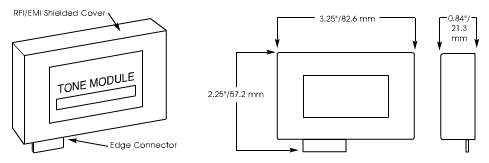

Diagrams

Specs

Height 0.84 IN
Width 3.25 IN
Length 2.25 IN
Tones See UTM Library
